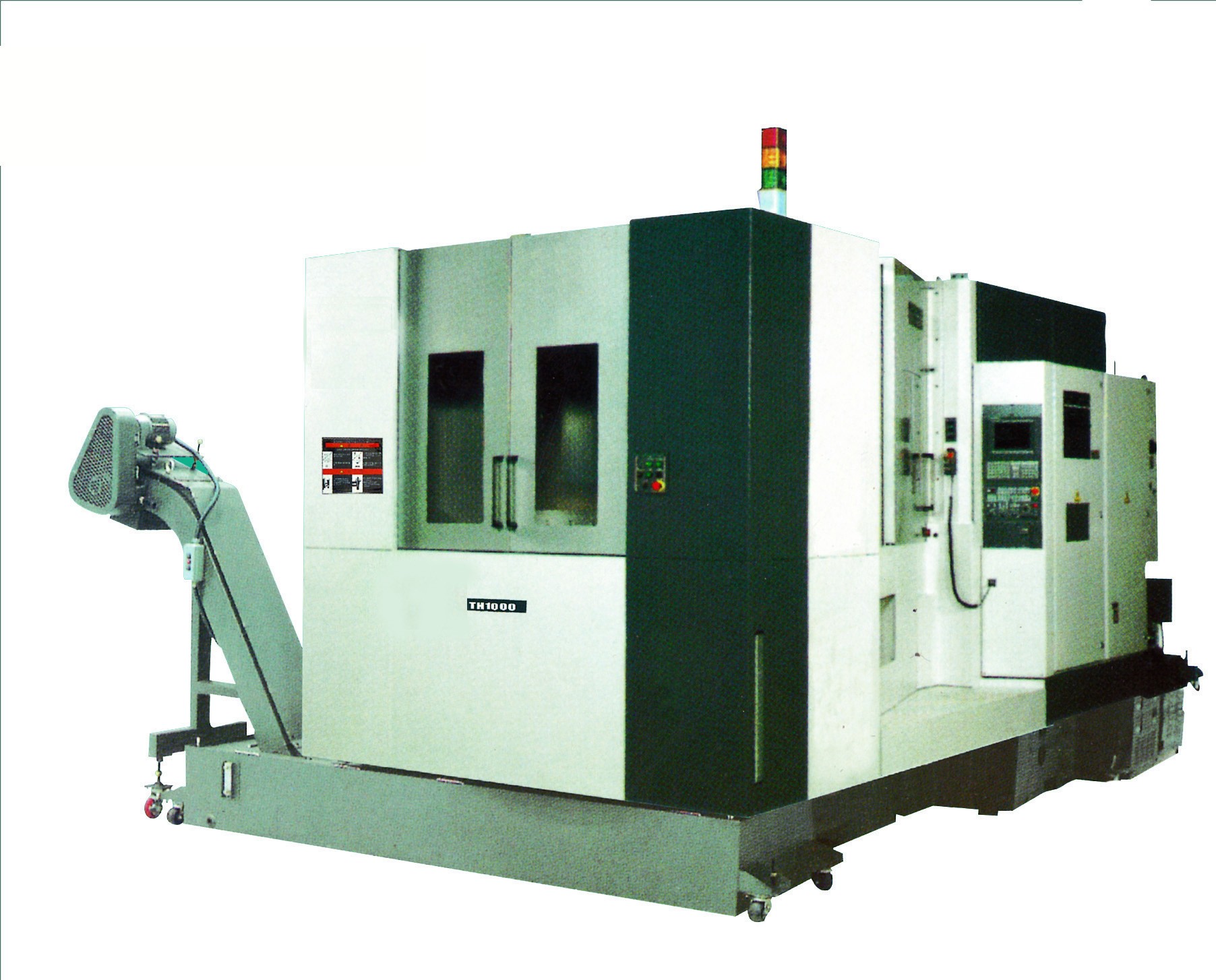

卧式加工中心TH630

TH630

回转工作台尺寸

Dimension of Rotary Table

mm

630x630

主轴规格

Spindle   Specification

BT50

主轴最高转速

Maximum   Spindle Speed

R/min

6000

刀库规格

Model   of automatic toolbox

圆盘Discal BT50-24T

最大刀具长度

Maximum   tool length

mm

350

换刀时间

Time of   the changing tool

s

15

控制系统

Control   system

发那科0i-MD

X、Y、Z行程

X/Y/Z   travel

mm

650x550x550

X、Y、Z机械定位精度

X/Y/Z   axis positioning precision

mm

0.015

重复定位精度

Re-positioning   precision

mm

±0.005

主轴端面到工作台中心距离

Distance   between spindle and worktable center

mm

150～750

主轴中心到工作台面距离

 Distance between spindle center and worktable

mm

50～700

快速进给速度

Feeding   speed

m/min

12

切削进给速度

Feeding   speed of cutting

m/min

1～10

工作台最大承重

Maximum load of worktable

Kg

1500

主轴电机功率

Motor   power of spindle

KW

18～22

进给电机功率

Motor   power of the feeding

KW

4/4/4(X/Y/Z)

转台电机功率

Motor   power of rotary table

KW

4

电气总容量

Total   power of the machine

KW

38

带自动排屑

With   automatic chip removal

Y

机床占地面积

Overall   Dimension (L*W*H)

mm

4000×5000×3500

机床约重

Approx   Net weight

Kg

15000
